應用例子工作紙

英工作紙 下載檔案

Secondary 2 Integrated Science Worksheet
Unit 7 Living Things and Air: "Smoking and Health"

Name: ______________________ Class: ________ Date:________________



A Smoking Pig Lung

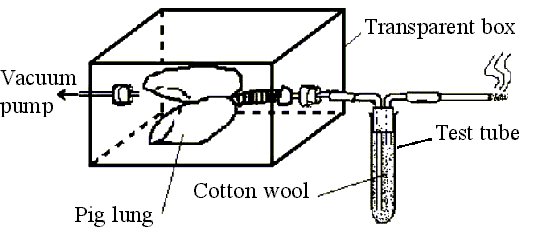

The following apparatus is used to simulate the smoking process note

  1. the effect of smoking on pig lung
  2. the substances in effluent smoke
  3. the mechanism of breathing (inhalation and exhalation)


Steps:

  1. Wash two pig lungs.
  2. Fix one of the pig lungs in the transparent box as shown in the above diagram, and connect the vacuum pump to the transparent box.
  3. Light the cigarette and switch on the vacuum pump.
  4. When the pig lung is expanded, switch off the vacuum pump.
  5. Switch the vacuum pump on and off until the cigarette is burnt completely.
  6. Light 10 more cigarettes by repeating steps 3 to 5.
  7. Remove the pig lung from the box and compare it with the untreated pig lung.
Discussion:
  1. What is the observable difference between the pig lungs with and without smoking?
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
  2. Dissect the two pig lungs, and observe the differences between them immediately.
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
  3. Carefully observe the cotton wool inside the test tube. What do you see? What does it demonstrate?
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
  4. Compare the difference between rates of burning of cigarettes when the vacuum pump is on and off. Explain it with the "breathing mechanism".
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
    _______________________________________________________________________________
