Appendix II: Simple Electric Circuit Activity

Purpose: The students should be able to build simple electric circuits and draw the corresponding diagrams. Materials: a battery, bulb and connecting wires

 Procedure:

1. Try to light the bulb by using a battery, bulb and connecting wires as shown in below.

2. Draw the diagrams of your circuits to the related boxes given below.

Diagrams that the bulb lights:

Diagrams that the bulb does not light:

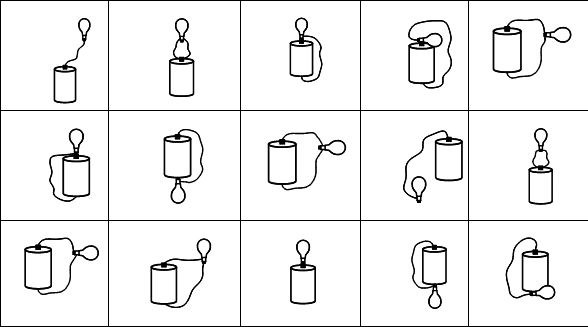

3. According to you, which bulbs light in the diagrams given below?

4. Try to build each circuit above and explain which conditions are necessary to light a bulb.

…………………………………………………………………………………………

…………………………………………………………………………………………

…………………………………………………………………………………………

…………………………………………………………………………………………
